Premium Series
Sign Application Tables
Discover our high-productivity CWT Premium Series sign application tables: advanced ergonomics and high performance for intensive workflows.
Designed for high-intensity production environments, the CWT Premium Series is an advanced solution for businesses requiring high performance and operational continuity. Ideal for sign manufacturers, print centres and application specialists, it allows all key processes to be managed with precision and speed.
The solid structure and fixed worktop ensure stability during the application of films, prints and self-adhesive materials onto rigid panels, maintaining a consistent quality standard even during the most intensive production cycles.
The electronic height adjustment system allows immediate adaptation to the operator’s needs, significantly improving comfort and ergonomics. The LED-lit work surface, available as an option, facilitates the most delicate operations, increasing precision in processing.
Designed to ensure long-term reliability and reduce operational stress, the Premium series represents a strategic choice for businesses focused on productivity, quality and operator well-being.
The solid structure and fixed worktop ensure stability during the application of films, prints and self-adhesive materials onto rigid panels, maintaining a consistent quality standard even during the most intensive production cycles.
The electronic height adjustment system allows immediate adaptation to the operator’s needs, significantly improving comfort and ergonomics. The LED-lit work surface, available as an option, facilitates the most delicate operations, increasing precision in processing.
Designed to ensure long-term reliability and reduce operational stress, the Premium series represents a strategic choice for businesses focused on productivity, quality and operator well-being.
Max Thickness
| 70mm |
Available models
-
CWT 1730 Premium Flatbed Applicator
-
CWT 1736 Premium Flatbed Applicator
-
CWT 1740 Premium Flatbed Applicator
-
CWT 1747 Premium Flatbed Applicator
Optional
-
CWT Compressor Shelf 1700 Series
-
CWT Cutter bench 1700 Series
-
CWT Light
-
CWT Linear Cutter Quick Dock
-
CWT Linear Cutter Smart Hanger
-
CWT Long Reach Cutter
-
CWT Roll Cradle
-

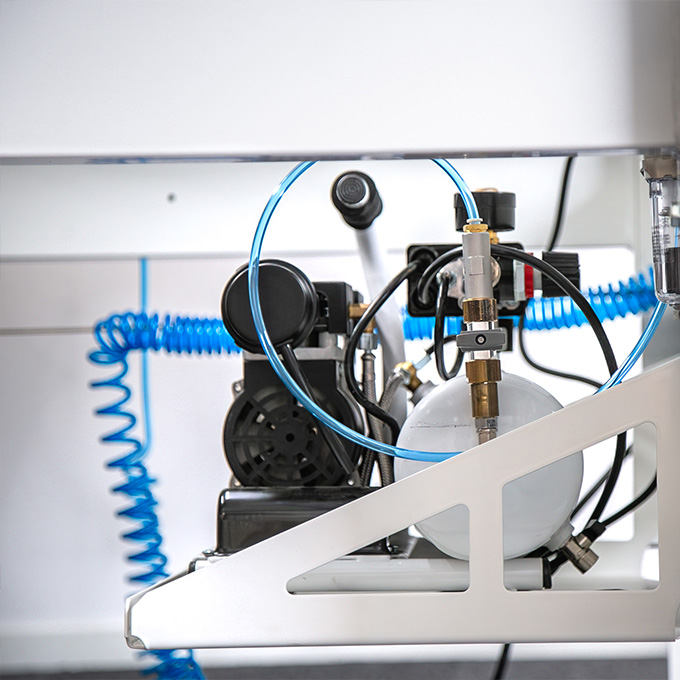

CWT Silent Compressor
-
CWT Sticky Cleaner
- Accessory Bundles
-
Air Supply
-
Perfect Trimming
-
Workflow Essentials
-
Workflow PRO
Technical Data
The manufacturer reserves the right to modify technical and aesthetic specifications without prior notice.
Product code: CWT1730-02
Table length: 3000 mm
Table width: 1720 mm
Working area length: 2560 mm
Working area width / roller: 1650 mm
Total width: 2045 mm
Maximum substrate thickness: 0-70 mm
Working height: 750-900 mm
Working height adjustment: Electronic
Table surface: Safety glass + cutting mat
Power supply: 230V/50Hz (10A) or 120V/60Hz (15A)
Compressed air supply: 6-8 bar
Net weight: 425 kg
Gross weight: 570 kg
Packaging dimensions: 3340 x 560 x 2100 mm
Warranty: 3 years
Table length: 3000 mm
Table width: 1720 mm
Working area length: 2560 mm
Working area width / roller: 1650 mm
Total width: 2045 mm
Maximum substrate thickness: 0-70 mm
Working height: 750-900 mm
Working height adjustment: Electronic
Table surface: Safety glass + cutting mat
Power supply: 230V/50Hz (10A) or 120V/60Hz (15A)
Compressed air supply: 6-8 bar
Net weight: 425 kg
Gross weight: 570 kg
Packaging dimensions: 3340 x 560 x 2100 mm
Warranty: 3 years
Catalogues
