Electro Trim

Electric Paper Cutter

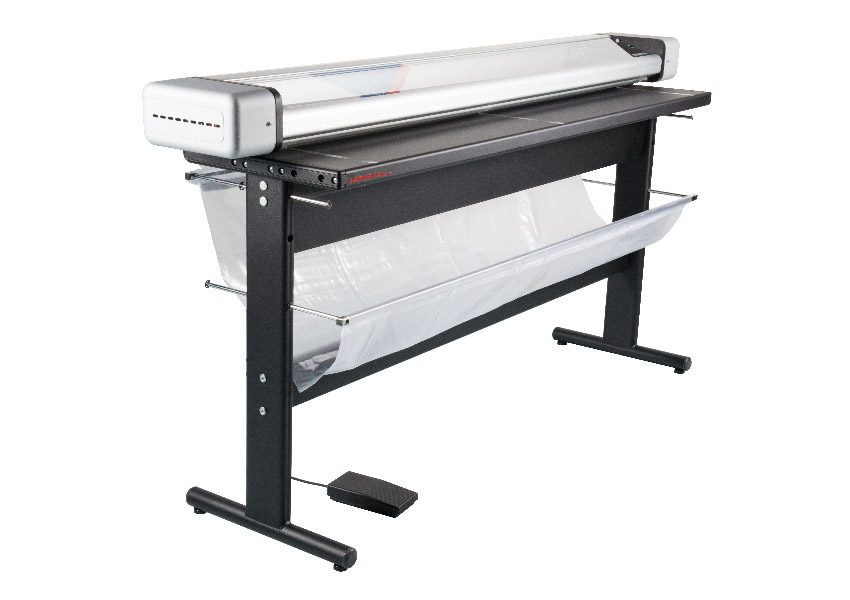

ELECTRO TRIM professional electric paper cutter Made in Italy realized to cut various materials such as paper, acrylic film, photo-film, photographic paper.

Electro Trim is equipped with a hardened steel rotary blade cutting head, mounted on a sliding tube. The metal parts are powder-coated which ensure high resistance to cuts and scratches.
The standard model includes a support for positioning on the ground with adjustable feet, the paper collection curtain for paper waste and a lamp that lights up the cutting area.
Max Cutting Thickness*
icona luce di taglio0,6mm
Available lengths
icona luce di taglio100/130/150/200/250cm
*The thickness may vary depending on the type of material
xy-matic-trim-plus-wallpaper-01
xy-matic-trim-plus-wallpaper-02
Main features
  • Steel worktable with transparent plastic paper collecting curtain for paper waste
  • Fixed blade in painted stainless steel, mounted on a reinforced cutting table
Materials
  • Paper
  • Acrylic Film
  • Photo-film
  • Photo Paper
  • Optional
  • Roll holder
Technical Data

The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.

Datasheet

100

130

150

200

250

Maximum Cutting Thickness

0,6 mm

0,6 mm

0,6 mm

0,6 mm

0,6 mm

Cutting Area Length

100 cm

130 cm

150 cm

200 cm

250 cm

Length

147 cm

177 cm

197 cm

247 cm

297 cm

Width

48 cm

48 cm

48 cm

48 cm

48 cm

Height

101 cm

101 cm

101 cm

101 cm

101 cm

Cutting Plane Height

87 cm

87 cm

87 cm

87 cm

87 cm

Weight

24 kg

30 kg

35 kg

46 kg

51 kg

Weight of the stand

14 kg

16 kg

17 kg

25 kg

28 kg

Cutting speed

2 m/sec-6,56 ft/sec

Power consumption

230V/50Hz-110V/60Hz
